5 Inch 1024*600 HDMI Display CTP IPS TFT Touch Screen for Raspberry Pi
Product Description
5-inch standard display with IPS full-view panel
Physical resolution 1024×600 dots for display
HD input with scaling function supporting up to 1920X1080 input
Capacitive touchscreen supporting 5-point touch control via USB (driver-free)
USB dimming function with PC software for online brightness adjustment
FPC flexible cable expansion for embedded installation
Built-in OSD menu for contrast/brightness/on-off control
Compatible with Raspberry Pi, BB Black, Banana Pi and other mini PCs
Supports Raspbian, Ubuntu, WIN10 IOT (multi-touch, driver-free) on Raspberry Pi
Supports Windows 7/8/8.1/10/11 (5-point touch, USB driver-free) as PC monitor
Compatible with PS4, Xbox360, Nintendo game consoles
CE and RoHS certified
Product Parameters
| Size |
5.0 inch |
| SKU |
MPI5005 |
| Resolution |
1024*600 dots |
| Touch |
5 point capacitive touch |
| Audio output |
Supported |
| Active Area |
108.00 × 64.80 mm |
| Dimensions |
121.11 × 95.24 mm |
| Weight |
259 g (package included) |
Product Size

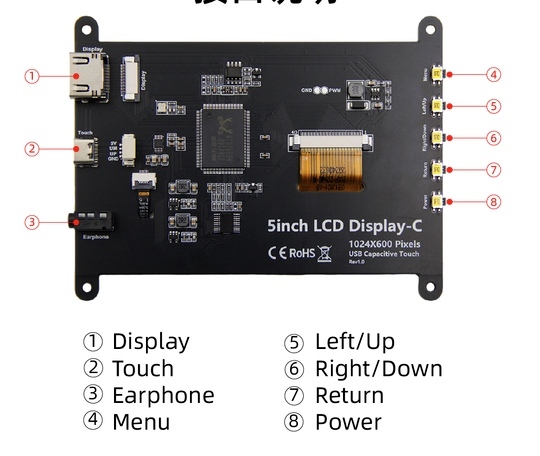

Hardware Description
① HDMI Interface: Connects motherboard for HDMI signal transmission
② USB Touch/Power: Provides power and touch output (use either port)
③ Earphone Jack: 3.5mm audio output
④ Menu Button: Access OSD settings/selection
⑤ Left/Up: Navigation keys (backlight shortcut)
⑥ Right/Down: Navigation keys (backlight shortcut)
⑦ Return Button: Back to previous menu
⑧ Power Button: Turn display on/off to save power
